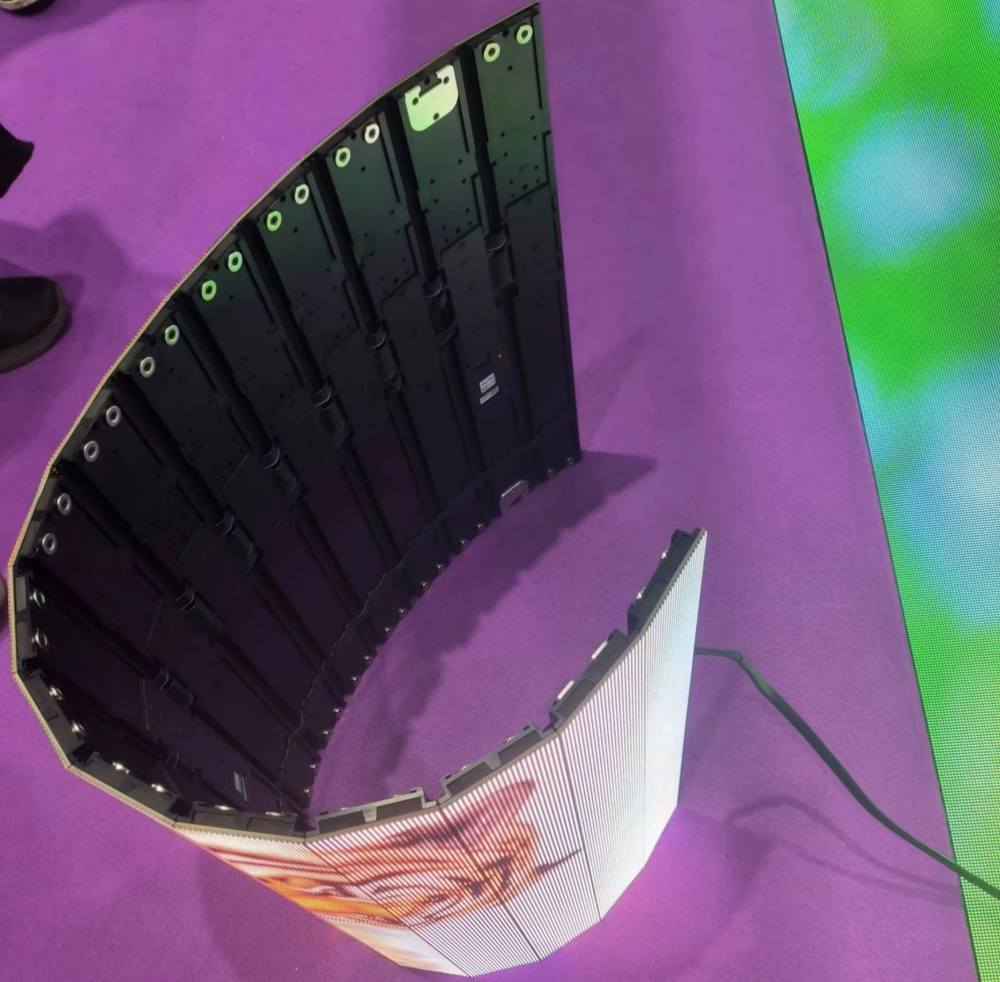

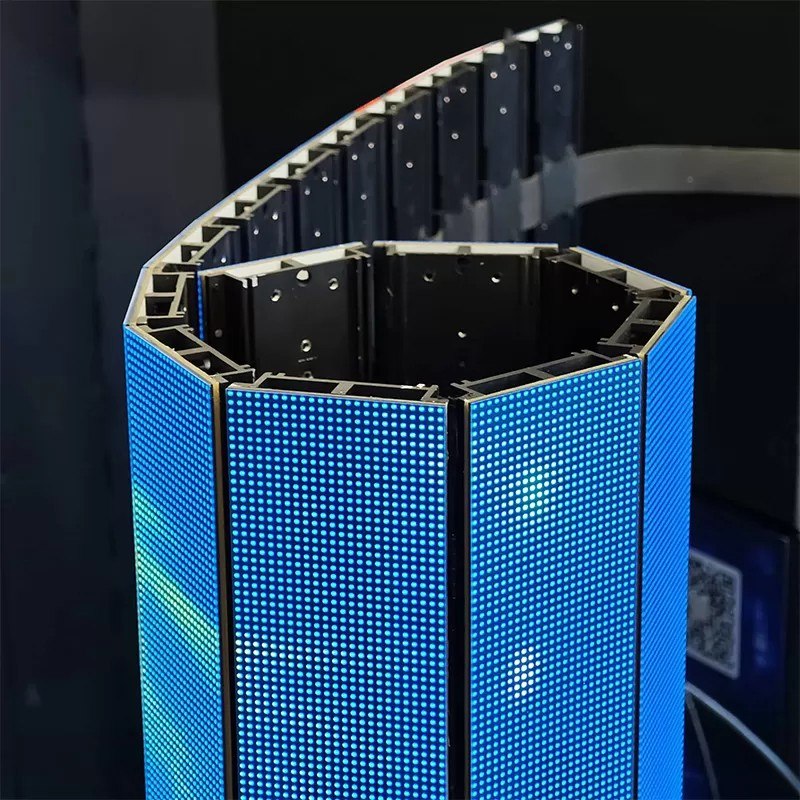

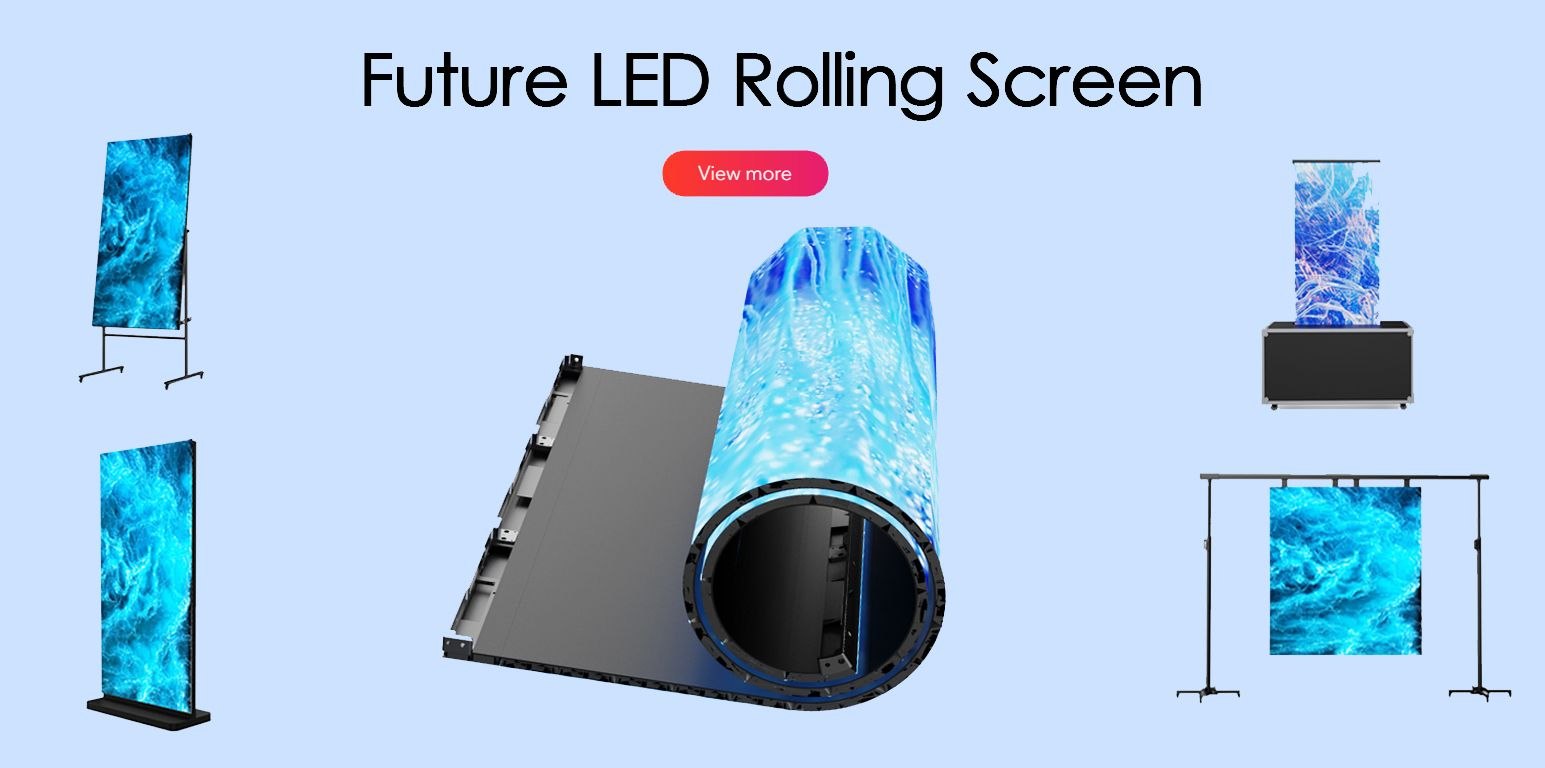

Rolling Floor Display is designed for replacing the conversional LED Floor Screen, which can be installed as simple as laying a carpet. Without PC mask, LED Rolling Floor Display can get the more excellent appearance and display effect in high contrast, and comparing with the conversional LED Floor screen, it is without the splicing gap problem, better flatness and integrity.
Product Features
- Fine pixel pitch: P0.9,P1.25,P1.5625,P1.953,P2.604,P3.91 : Small pitch pixel ensures the HD display,higher contrast and more realistic colors.
- GOB Technology (IK10 &IP65) : Surface safty with IK10 anti-collision grade and IP65 Waterproof grade,also with Non-slip mat and anti-reflection.And high visual performance (with high contrast LED for uniform visual performance in black)are considered.
- Built-in receiving card: save space.
- 6063 Aluminum module case : Aluminum case adopts stretching process,which makes sure the accurate size and have the best heat dissipation from the LED.
- Low voltage input : :Low voltage 24V/DC input for every unit screen ensures safer use.
- Free installation and easy maintenance : lts simple structure allows for easy installation and quick maintenance.
- Low voltage input :Low voltage 24V/DC input for every unit screen ensures safer use.
- .Free installation and easy maintenance :lts simple structure allows for easy installation and quick maintenance
Mupltiple Installation and Application

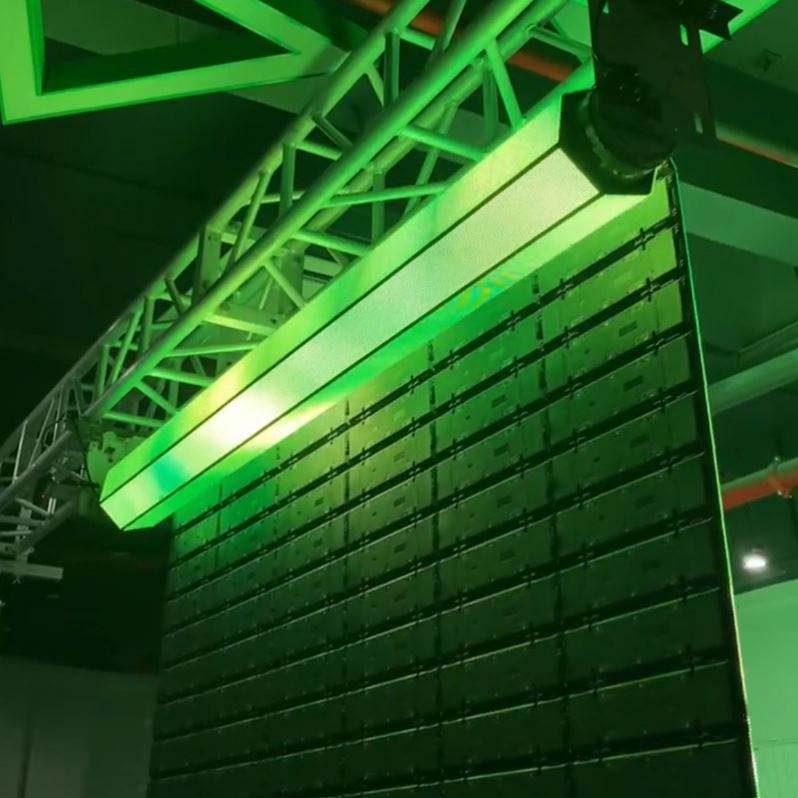

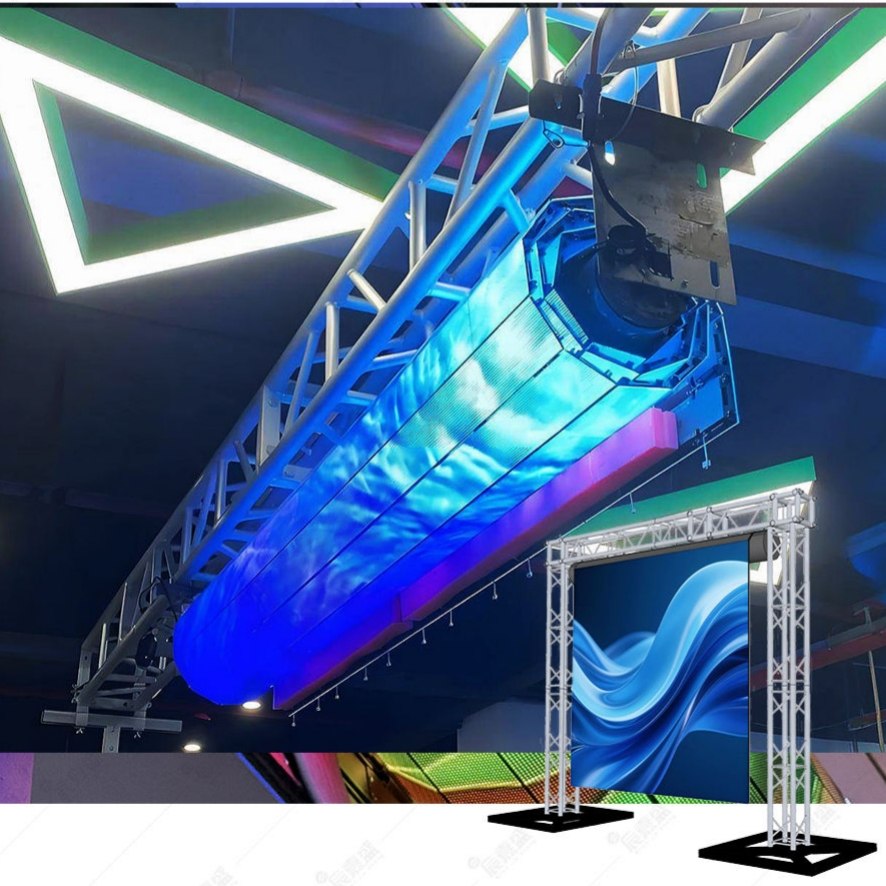

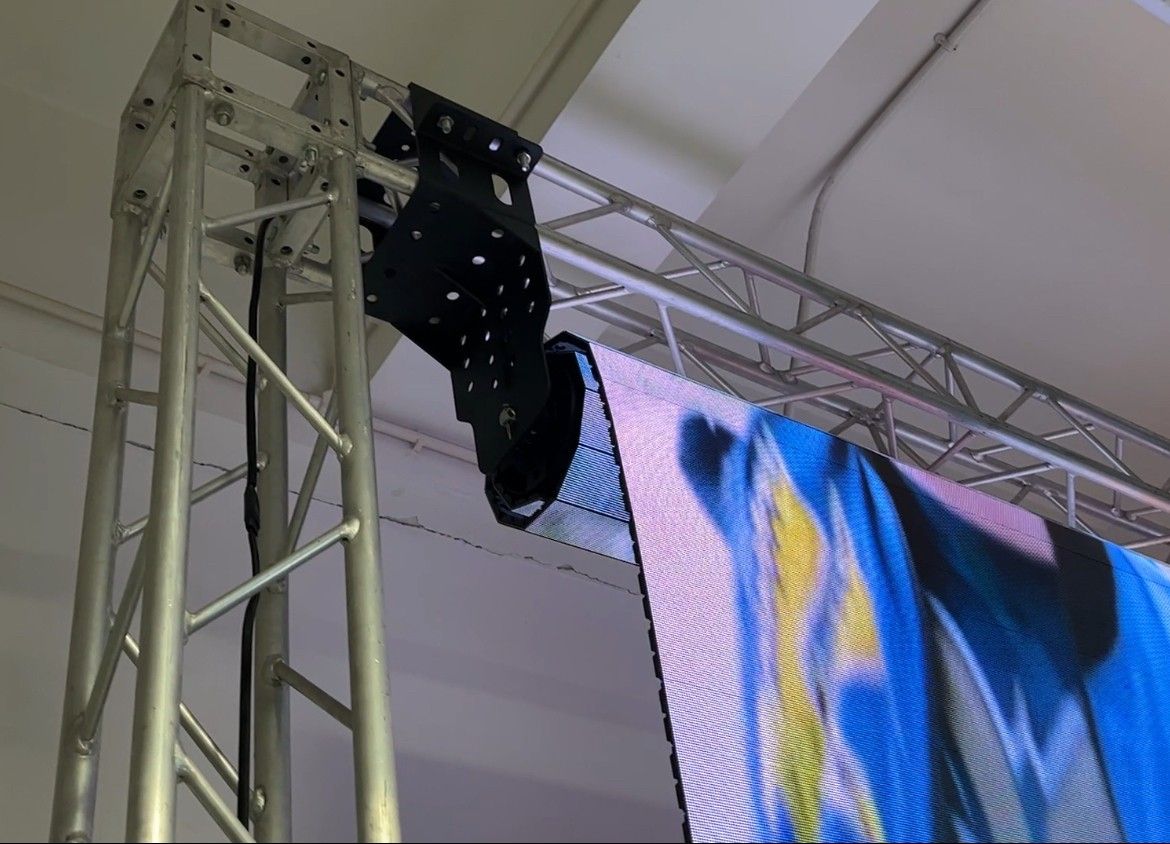

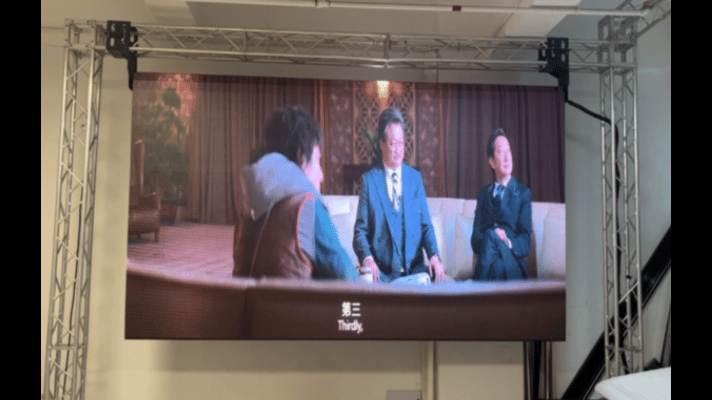

- It can be hanging to ceiling, and by using together with motor, can automatically rolling to reel to hide

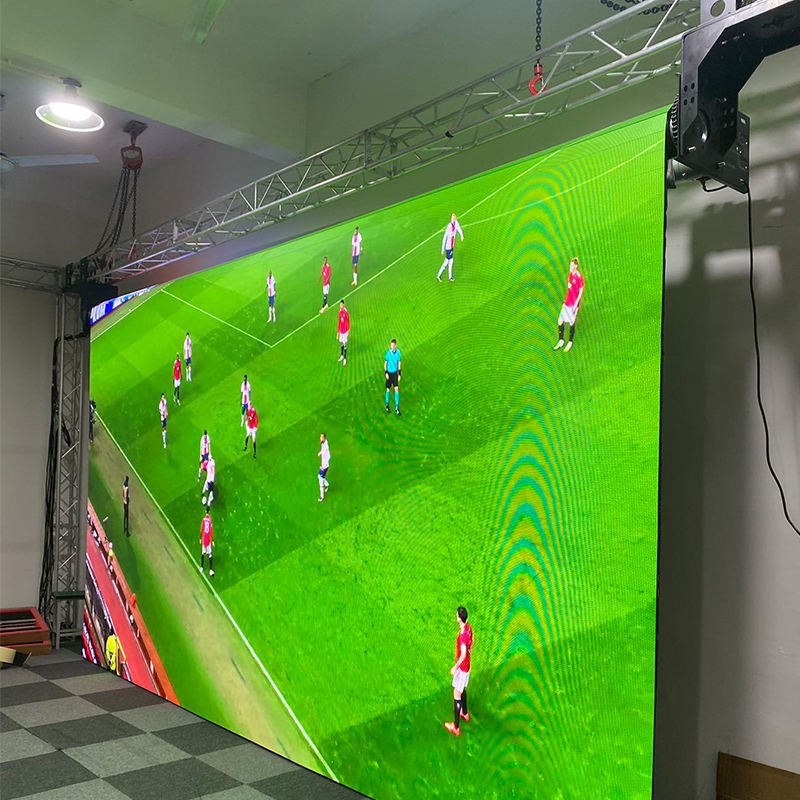

- Fixing to wall: firstly make and fix a slim metal frame onto wall, then can directly stick the rolling LED display video wall screen via magnets to the frame to, turn the wall into a TV video LED wall.

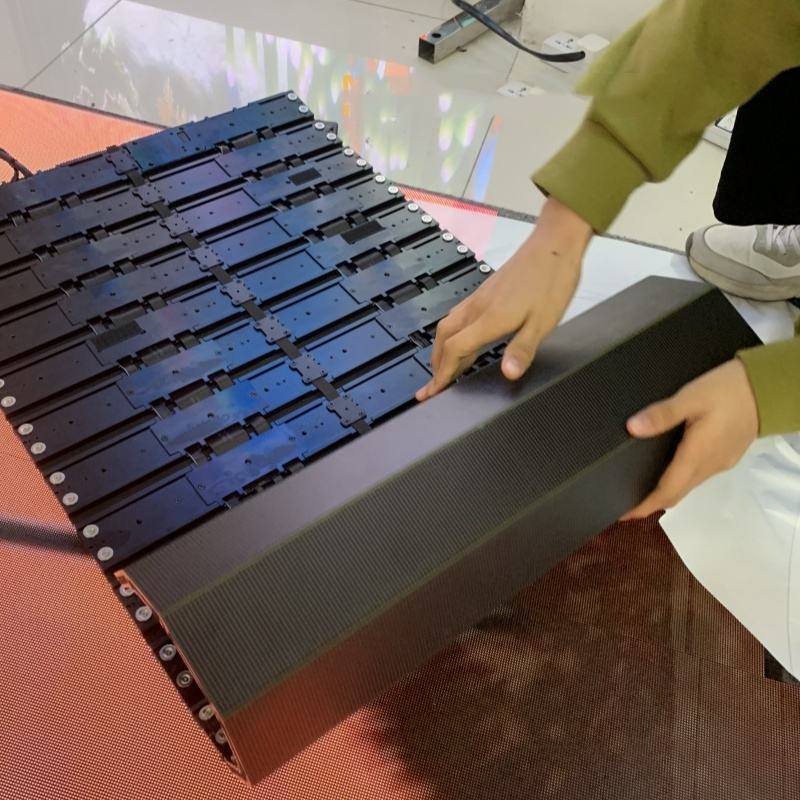

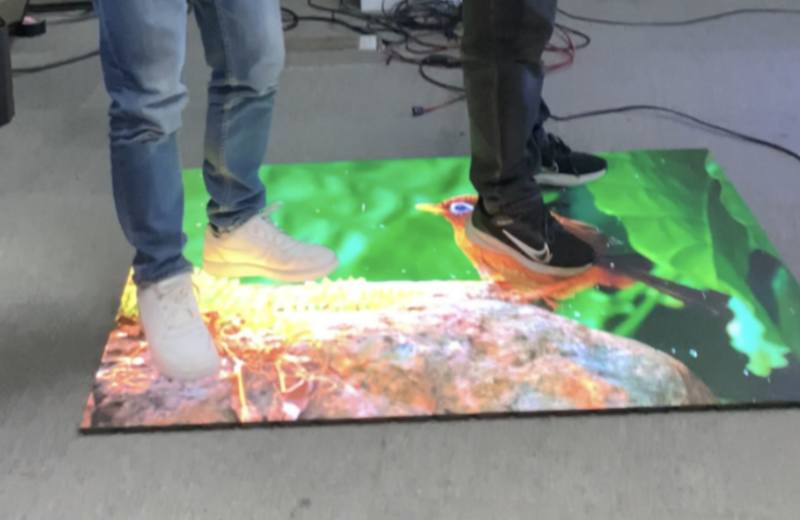

- Put on floor directly as carpet LED display screen
| Product Paramenters | |||||
| Pixel Pitch (mm) | 1.25 | 1.56 | 1.93 | 2.604 | 3.91 |
| LED Configuration | SMD1212 | SMD1212 | SMD1212 | SMD1515 | SMD1515 |
| Pixel Density (pixels/m²) | 640000 dot/m² | 409600 dot/m² | 262144 dot/m² | 147456 dot/m² | 65536 dot/m² |
| Module Size | 500 x 62.5 x 18 | 500 x 62 .5x 18 | 500 x 62.5 x 18 | 500 x 62 .5x 18 | 500 x 62.5 x 18 |
| (W x H x D)(mm) | |||||
| Cabinet Size | 1000 x 1500 x 18 | 1000 x 1500 x 18 | 1000 x 1500 x 18 | 1000 x 1500 x 18 | 1000 x 1500 x 18 |
| (W x H x D)(mm) | |||||
| Scan | 50s | 40s | 32s | 16s | 16s |
| Brightness (cd/㎡) | 600 | 600 | 700 | 700-1000 | 700-1000 |
| Max./Avg. Power | 200 / 100 | ||||
| (W/Cabinet) | |||||
| Viewing Angle | 160°/160° | ||||
| Operating Voltage | 100-240V AC 50-60Hz | ||||
| Refresh Rate | 3840Hz | ||||
| IP Rating (Front/Rear) | IP54/IP45 | ||||
| Maintenance Mode | Front & Rear Maintenance | ||||
| Max Load-Bearing | 2000kg | ||||
