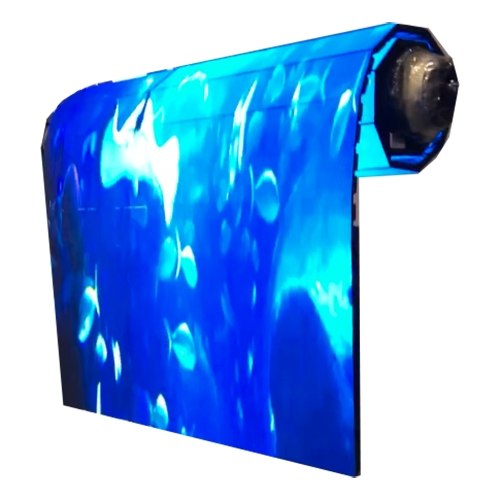

Roll up dance floor led display with hanging function
the rolling LED display be able to play muitple roles in display field like LED video wall, LED Floor Screen (carpet screen), LED Picture Wall Screen, LED Stage Screen, LED Rolling Gate Screen, LED TV Screen, All-in-One LED Poster, etc.
LED Rolling Display is a new generation of innovative LED Display productts, its excellent structure design makes it rolls up like paper and it has the appearance of ultra-thin and utra-lightweight,is the ideal alternative to traditional display, suitable for all traditional display applications. Due to its innovative design, the rolling LED display be able to play muitple roles in display field like LED video wall, LED Floor Screen (carpet screen), LED Picture Wall Screen, LED Stage Screen, LED Rolling Gate Screen, LED TV Screen, All-in-One LED Poster, etc.
Features:
360° foldable Smart Plus Rolling LED Dance Screen.
High quality and IP65 rating with waterproof grout for outdoor indoor use.
Hanging installation or magnet-based mounting.
Discrete power supply.
Easy installation without panels, steel structure and fans.
Slim and light display for efficient and convenient transportation and installation.
Remote control is optional for one-touch automatic lifting and lowering.
| Product Paramenters | |||||
| Pixel Pitch (mm) | 1.25 | 1.56 | 1.93 | 2.604 | 3.91 |
| LED Configuration | SMD1212 | SMD1212 | SMD1212 | SMD1515 | SMD1515 |
| Pixel Density (pixels/m²) | 640000 dot/m² | 409600 dot/m² | 262144 dot/m² | 147456 dot/m² | 65536 dot/m² |
| Module Size | 500 x 62.5 x 18 | 500 x 62 .5x 18 | 500 x 62.5 x 18 | 500 x 62 .5x 18 | 500 x 62.5 x 18 |
| (W x H x D)(mm) | |||||
| Cabinet Size | 1000 x 1500 x 18 | 1000 x 1500 x 18 | 1000 x 1500 x 18 | 1000 x 1500 x 18 | 1000 x 1500 x 18 |
| (W x H x D)(mm) | |||||
| Scan | 50s | 40s | 32s | 16s | 16s |
| Brightness (cd/㎡) | 600 | 600 | 700 | 700-1000 | 700-1000 |
| Max./Avg. Power | 200 / 100 | ||||
| (W/Cabinet) | |||||
| Viewing Angle | 160°/160° | ||||
| Operating Voltage | 100-240V AC 50-60Hz | ||||
| Refresh Rate | 3840Hz | ||||
| IP Rating (Front/Rear) | IP54/IP45 | ||||
| Maintenance Mode | Front & Rear Maintenance | ||||
| Max Load-Bearing | 2000kg | ||||
